ELITE Series · Pair

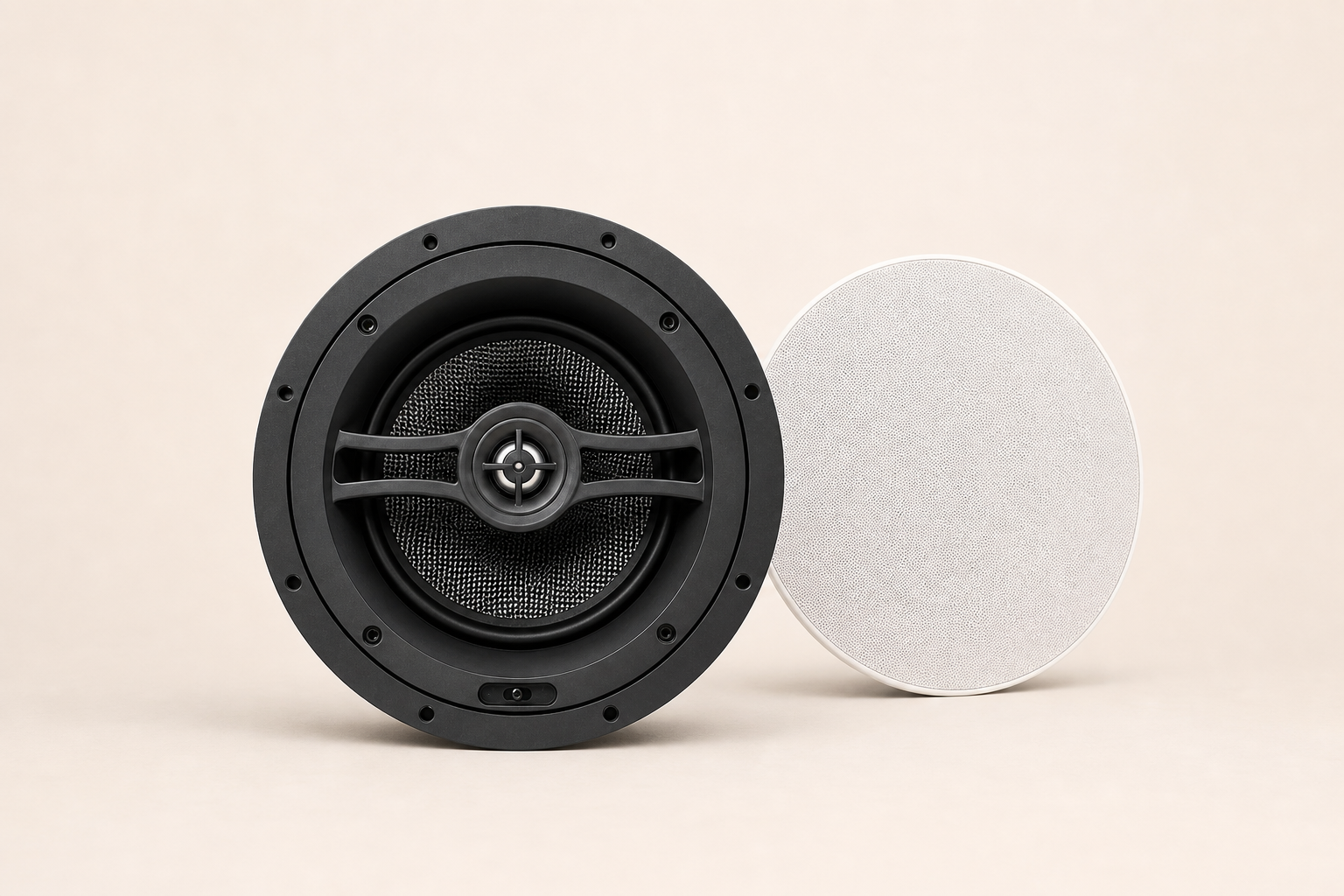

ELI-800A v2
8" angled LCR in-ceiling loudspeaker
Purposeful sound.
Professional installation.

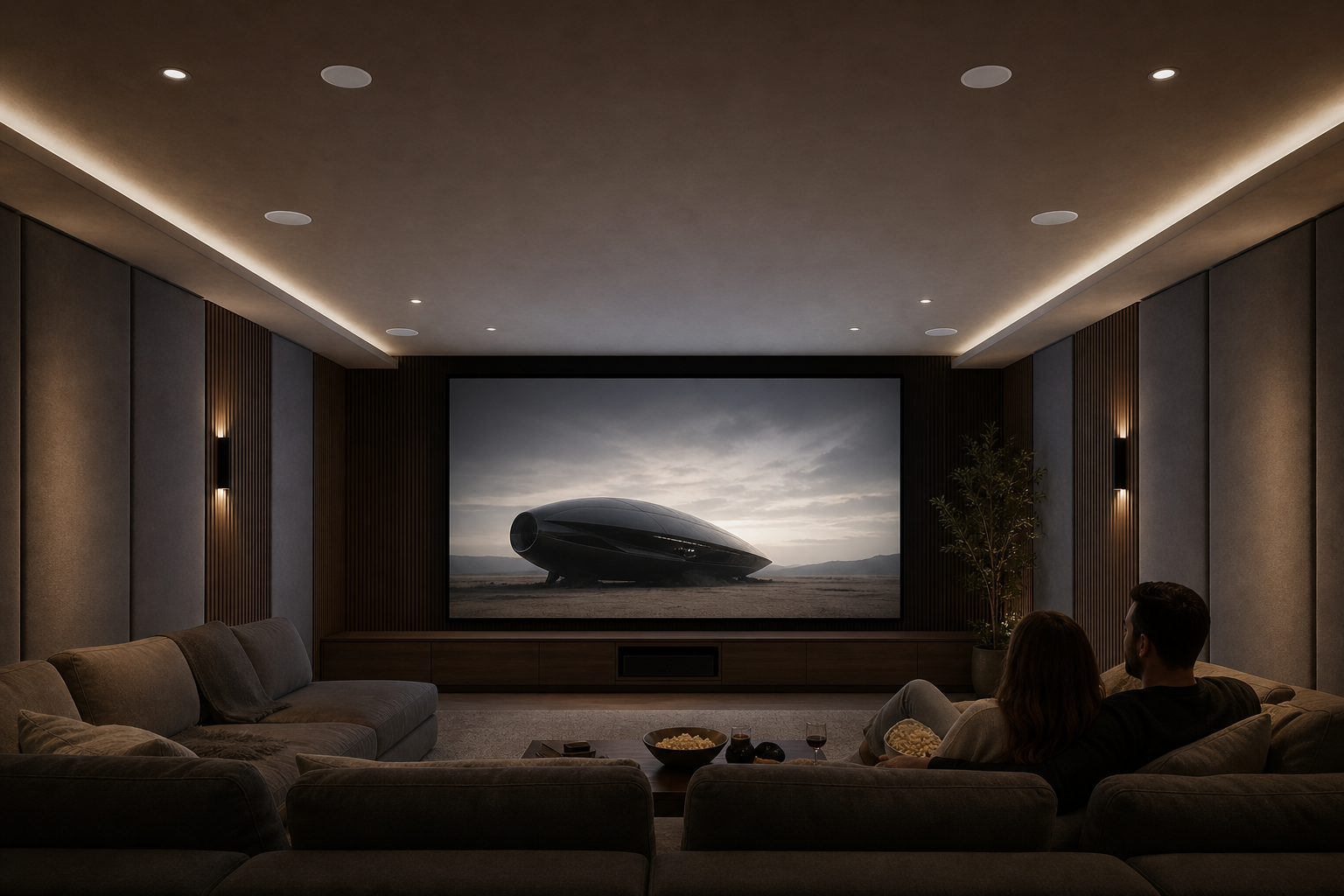

A high-output angled architectural LCR loudspeaker for 5- and 7-channel home cinema systems, directing cinema sound toward the listening area from a discreet ceiling position.
View specifications ↓Designed around the project
Where it belongs.
A high-output angled architectural LCR loudspeaker for 5- and 7-channel home cinema systems, directing cinema sound toward the listening area from a discreet ceiling position.
5-channel cinema7-channel cinemaLCR systemsLarge media rooms
Technical specifications
ELI-800A v2
- Woofer
- 8" carbon-fiber composite cone at 15°
- Tweeter
- 1" pivoting titanium-dome tweeter
- Power handling
- 175 watts
- Nominal impedance
- 8 ohms
- Frequency response
- 35 Hz–20 kHz
- Sensitivity
- 88 dB
- Adjustment
- Front-mounted contour switch
- Dimensions
- 11.50" diameter × 5.37" depth
- Cutout
- 9.87"
- Connections
- Gold-plated 5-way binding posts
